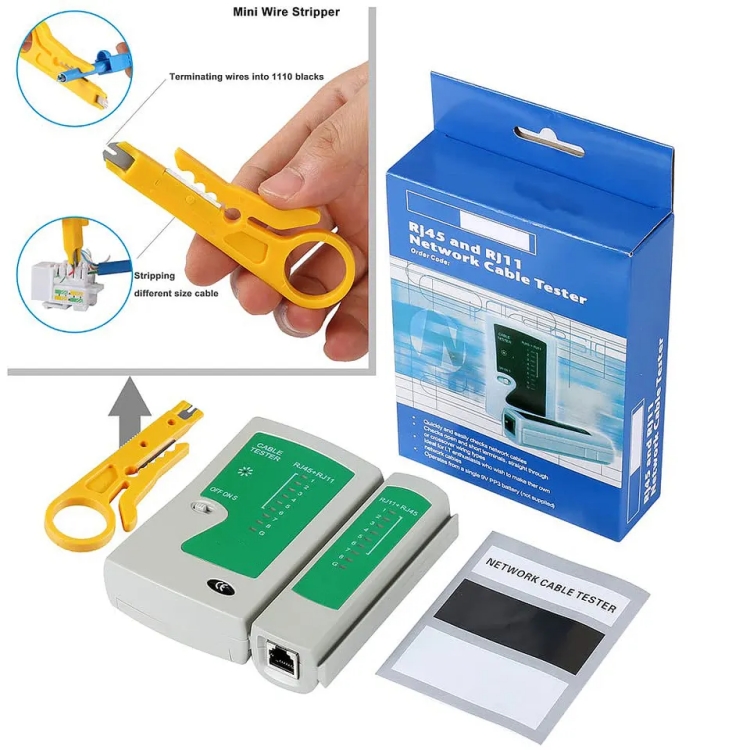

Universal type Lan cable Tester Channel test

·Function Network Cable Tester Tests Network or Telephone Cables RJ11/RJ12/RJ45 CAT 5/5e CAT 6/6a whatever the Line Sequence is TIA-568A/568B,AT or T 258-A

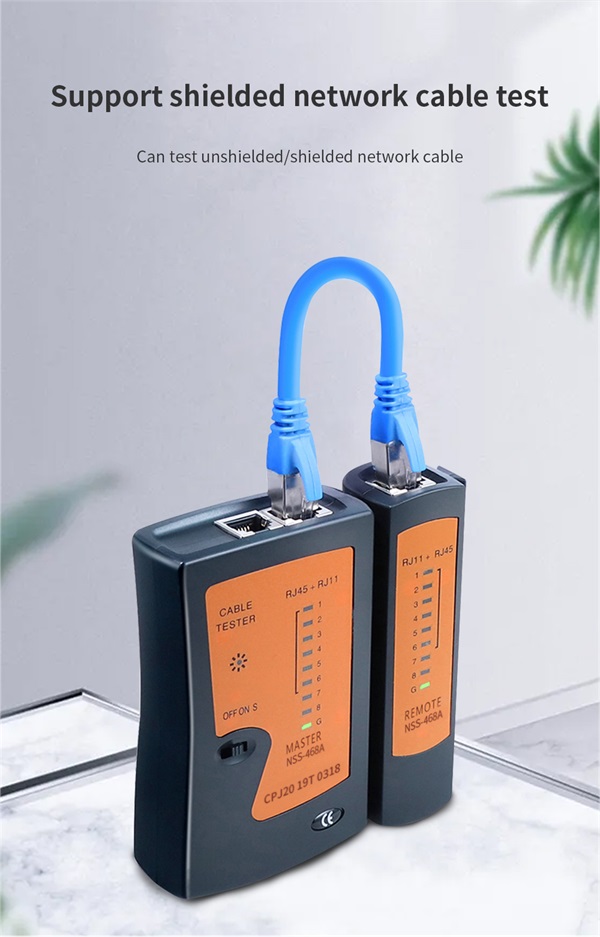

·Led Light Easy to read LED light. Testing Normal network cable the light will light from 1 to 8 one by one and Testing the UPT Network cable the light will light from 1-G one by one means the cable will work

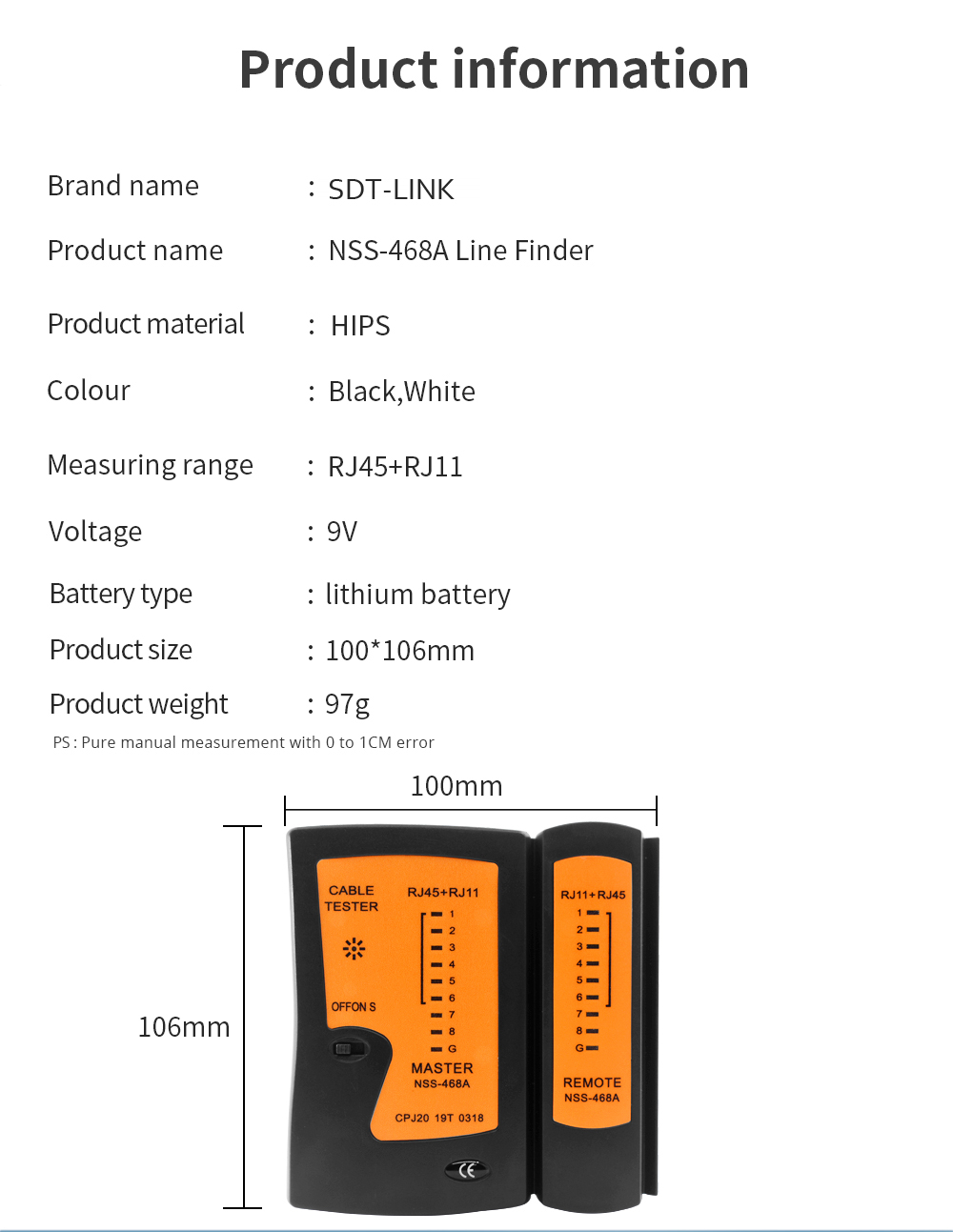

·Remote Our tester consists of two parts and it is detachable,so it can be used to test long distance cable(≤300M/984.25Feet) ·Portable The weight of tester is only 94g/0.207LB The lightweight handheld design allows you to carry it to anywhere. Features:

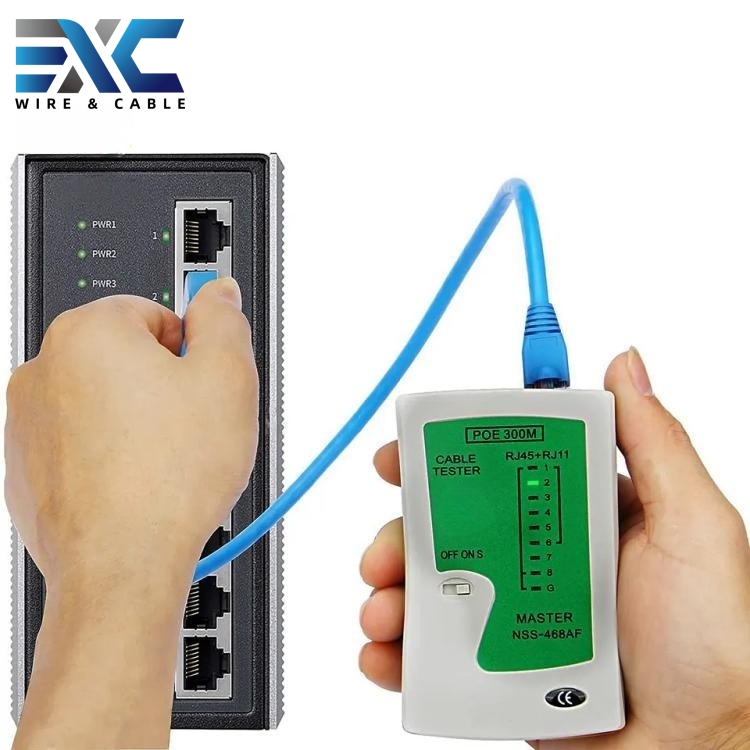

·Keep your network running smoothly by testing your cables to uncover problematic shorts, open wires, crossing pairs and other wiring mishaps ·Use for testing your homemade Ethernet patch cables to make sure they are in working order prior to connecting to your devices

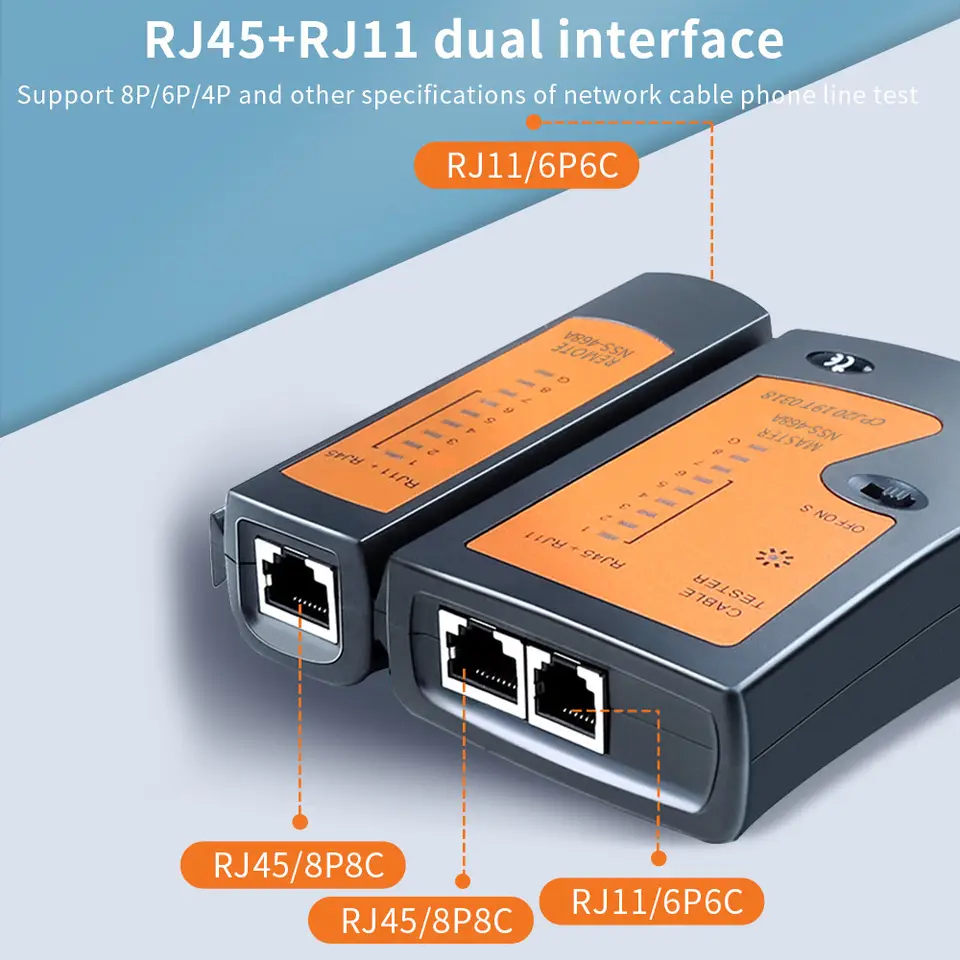

·Tests RJ45 cables, RJ11 telephone cables and network cables. Requires one 9V battery ·Easy to read LED display indicates problems.Hand-held for portability. Following are abnormal connections:
·If one cable, for example cable NO.3 is open circuited, the two NO.3 lights of the main tester and remote tester will not turn on.
·If several cables are not connected, several lights will not turn on respectively. If less than two cables are connected, none of the lights is on.
·If two ends of a cable is disordered, for example NO. 2and NO. 4, then displays on:  ·Main tester: 1-2-3-4-5-6-7-8-G  ·Remote tester: 1-4-3-2-5-6-7-8-G
·If two cables are short circuited, neither of the corresponding lights is on of the remote tester while main tester remains unchanged. If three cables, including three, are short circuited, none of the corresponding lights is on.
·If test patch panels or wall plate outlles, two cables which can match each other (RJ45) will be connected to the tester.
·If test cables of the same axes, BNC turns on when the cable works.  ·9V reduplicated battery is used in this tester. Battery is advised to change if any weak light appears.
