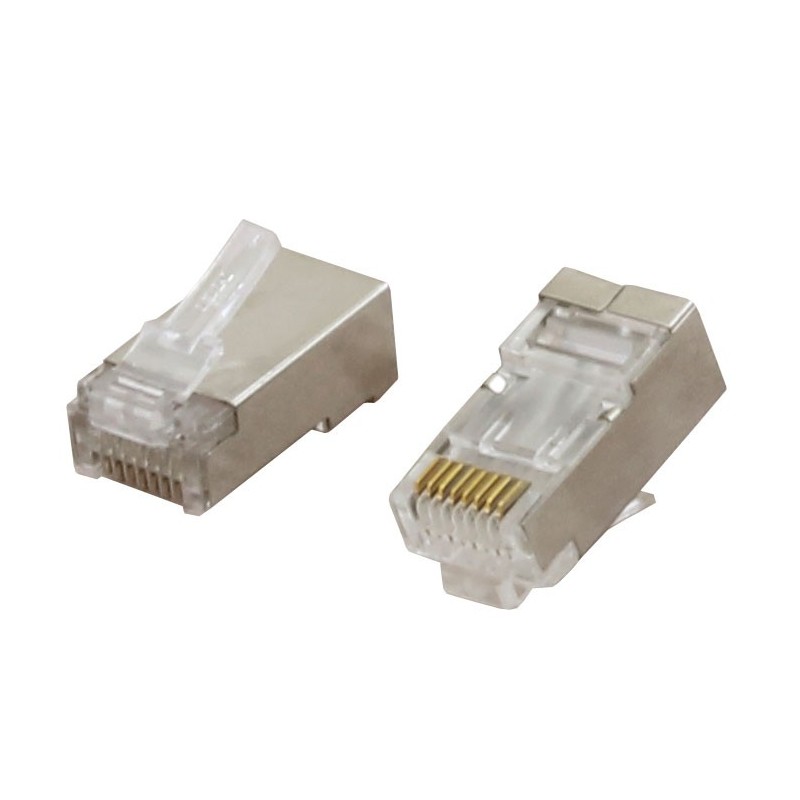

High Speed Stabilization Cat6 FTP RJ45 Plug

Short Description:

These Cat6 FTP shielded Rj45 plugs are suitable for terminations on both Stranded Patch and Solid core shielded Cat6 Cable. They are of single piece construction.

Get A Quote Get Product Data

Product Detail

Product Tags

Product Description

The RJ45 plug used for terminating Cat6 FTP cables is essentially the same as the one used for terminating Cat6 UTP cables. The difference lies in the construction and installation of the cable itself. Cat6 FTP cables have an additional layer of foil shielding around each twisted pair of wires, providing an extra layer of protection against EMI.

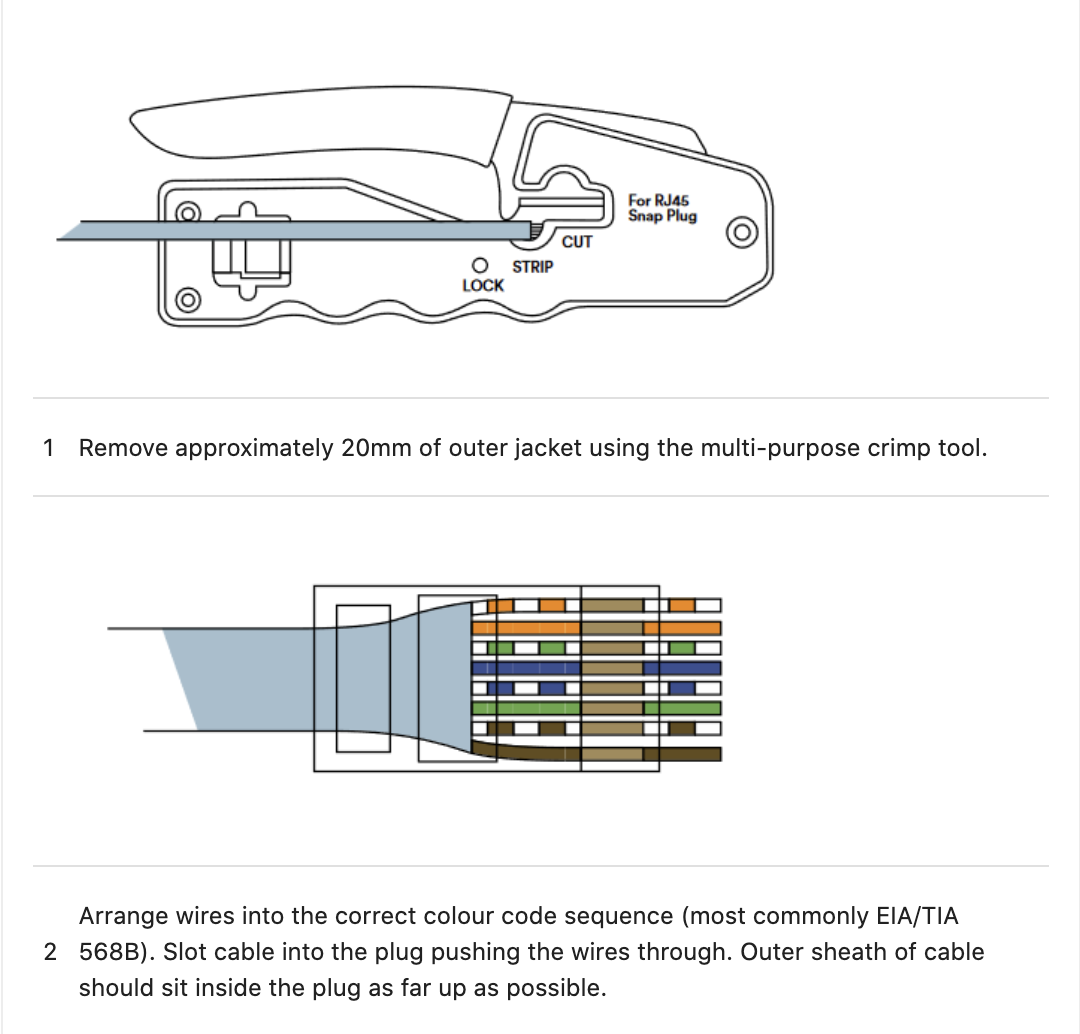

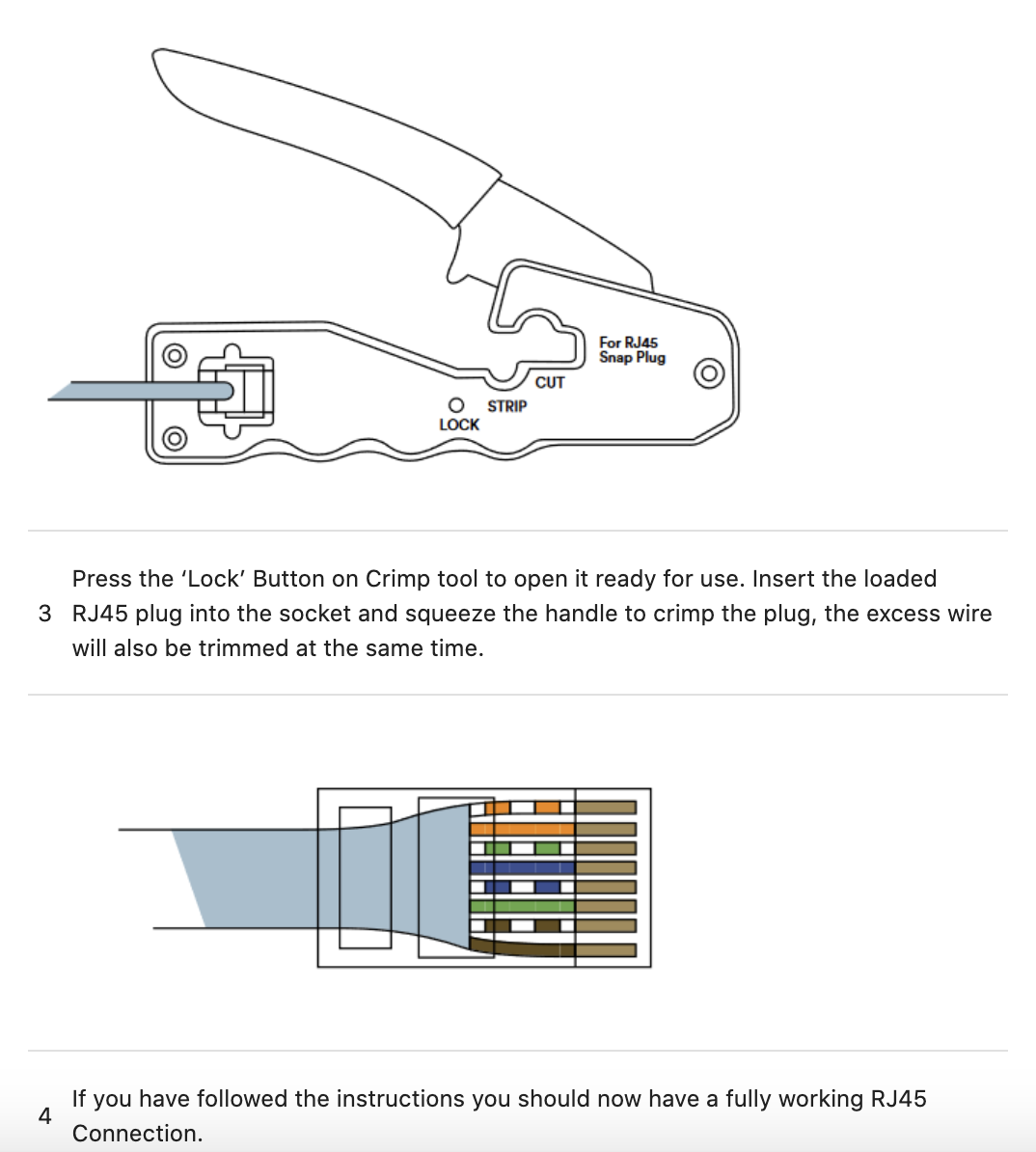

When terminating a Cat6 FTP cable with an RJ45 plug, the foil shielding must also be properly grounded to ensure optimal performance. This typically involves connecting the foil shield to the ground pin within the RJ45 plug or using a separate grounding wire or clip.

By using Cat6 FTP cables with properly terminated RJ45 plugs, you can create a more robust and reliable network connection in environments with a high potential for interference or crosstalk, such as industrial or commercial settings.

Product Parameter

PLUG SPECIFICATIONS *UL 1863 No. 137614(DUXR2), complies with FCC part 68 subpart F standards.

Electrical Test	1..Dielectric Withstanding Voltage test 1000V/DC
	2. Insulation Resistance: >500MΩ
	3. Contact Resistance:<20MΩ
Gold Plate Inspection (Per MIL-G-45204C)	1. TYPE II (99% pure gold minimum)
	2. Grade C+(KNOOP HARDNESS RANGE 130~250)
	3. Class 1(50 microinches minimum thickness)
Mechanical	1. Cable-to-plug tensile strength-20LBs(89N) min.
	2. Durability:2000 mating cycles.
Material & Finish	1. Housing Material: Polycarbonate(PC.) 94V-2(For UL 1863 DUXR2)

	2. Contact blade: Phosphor Bronze
	a. High strength copper alloy [JIS C5191R-H(PBR-2)].
	b.100 microinches nickel under plated & Gold selected.
	Operating Temperature:-40 ℃~+125℃

Details Images

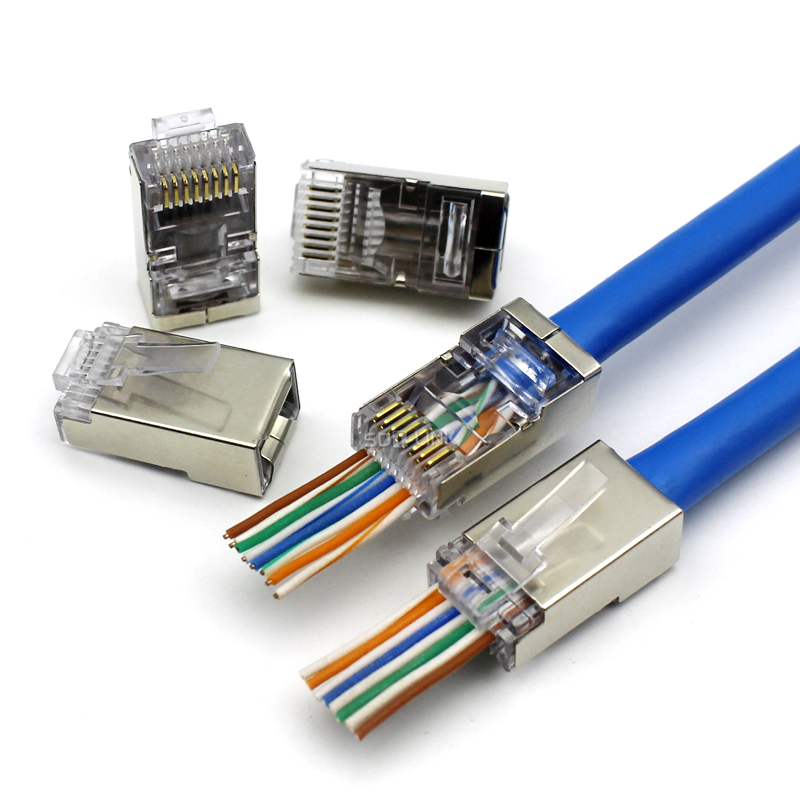

High speed stabilization Cat6 FTP RJ45 Plug (2)

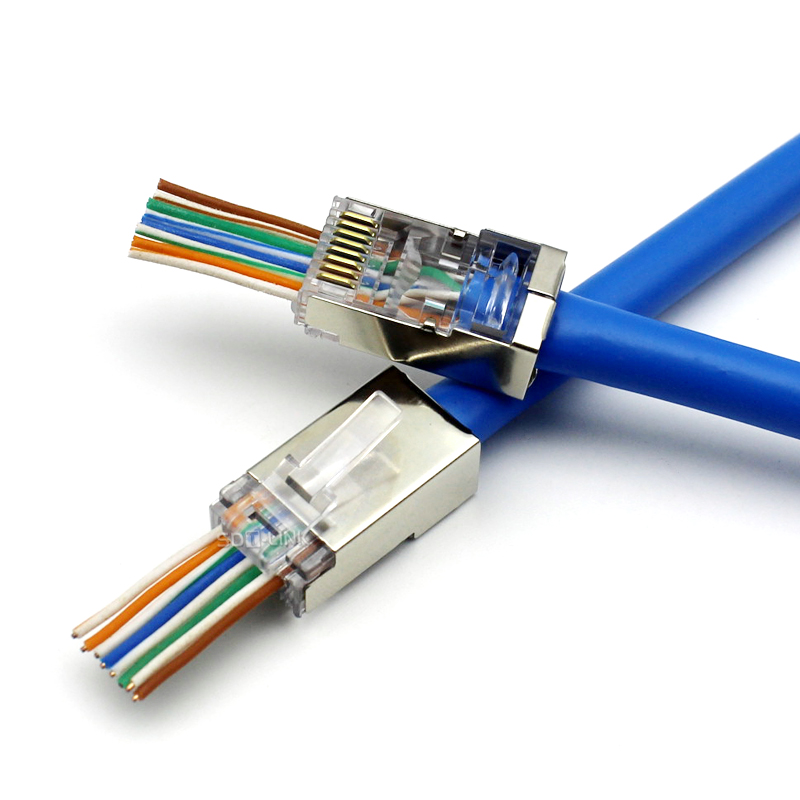

High speed stabilization Cat6 FTP RJ45 Plug (3)

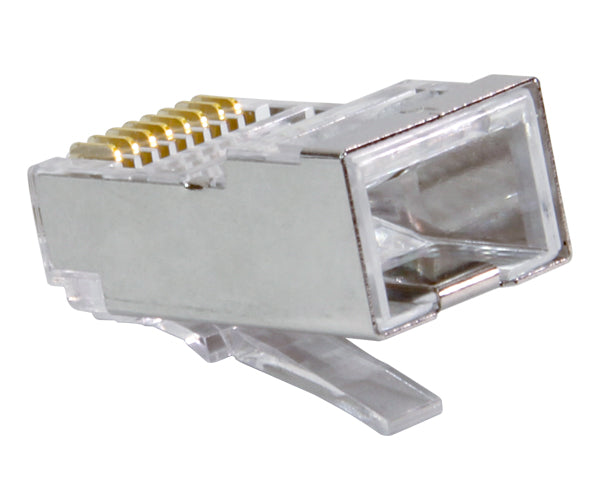

High speed stabilization Cat6 FTP RJ45 Plug (1)
