High quality Outdoor Optical Fiber Cable
Product Description
· It has good mechanical properties and temperature characteristics.
· The loose sleeve is made of materials with good hydrolysis resistance and highstrength
· The pipe is filled with special grease which can protect the optical fiber critically.
· It has good compression resistance and flexibility;
· The following measures are adopted to ensure the waterproof performance of fiber optic cables:
· A single metal central strength member.
· The loose sleeve is filled with special waterproof compound.
· Complete filling of core.
· Moisture-proof layer of the plastic coated aluminum strip (APL).
· Double-sided coated plastic steel strip (PSP) can improve the moisture resistance of fiber optic cables.
· With good water-blocking material, it can prevent longitudinal water penetration offiber optic cables.
Product Parameter
|
Item |
Technology parameter |
|

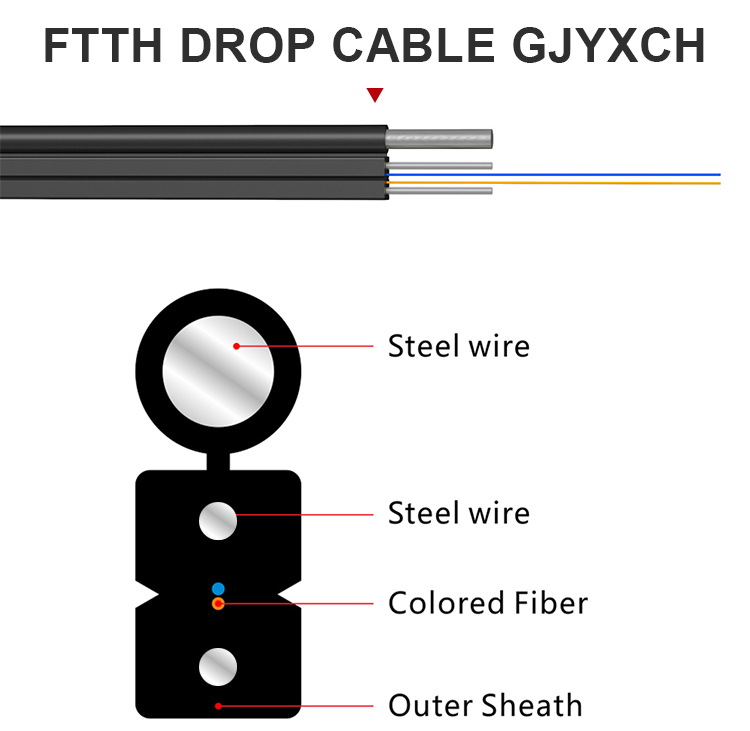

Cable type |
Drop Cable |
|
Cable Count |
1 2 4 6 8 12 |
|
Fiber color |
Green, Yellow |
|
Fiber type |
9/125 (G657A2) |
|
Sheath color |
Black and white |
|
Sheath material |
LSZH |
|
Cable dimension (mm) |
3.0(±0.1)*2.0(±0.1); 5.2(±0.1)*2.0(±0.1) |
|
Cable weight (Kg/km) |
15 |
|
Min. bending radius (mm) |
10 (Static) 25 (Static) 30 (Static) 60 (Static) |
|
Attenuation (dB/km) |
0.4 at 1310nm, 0.3 at 1550nm |
|
Short term tensile ( N) |
200; 600 |
|
Crush resistance (N/100mm) |
1000; 2200 |
|
Operation temperature (℃) |
-20~+70℃ |
Details Images
Company Profile
EXC Cable & Wire was established in 2006. With headquarters in Hong Kong, a Sales team in Sydney, and a factory in Shenzhen, China. Lan cables, fiber optic cables, network accessories, network rack cabinets, and other products related to network cabling systems are among the products we manufacture. OEM/ODM products can be produced according to your specifications as we are an experienced OEM/ODM producer. North America, the Middle East, Europe, and South East Asia are some of our major markets.
Certification
CE
Fluke
ISO9001
RoHS
